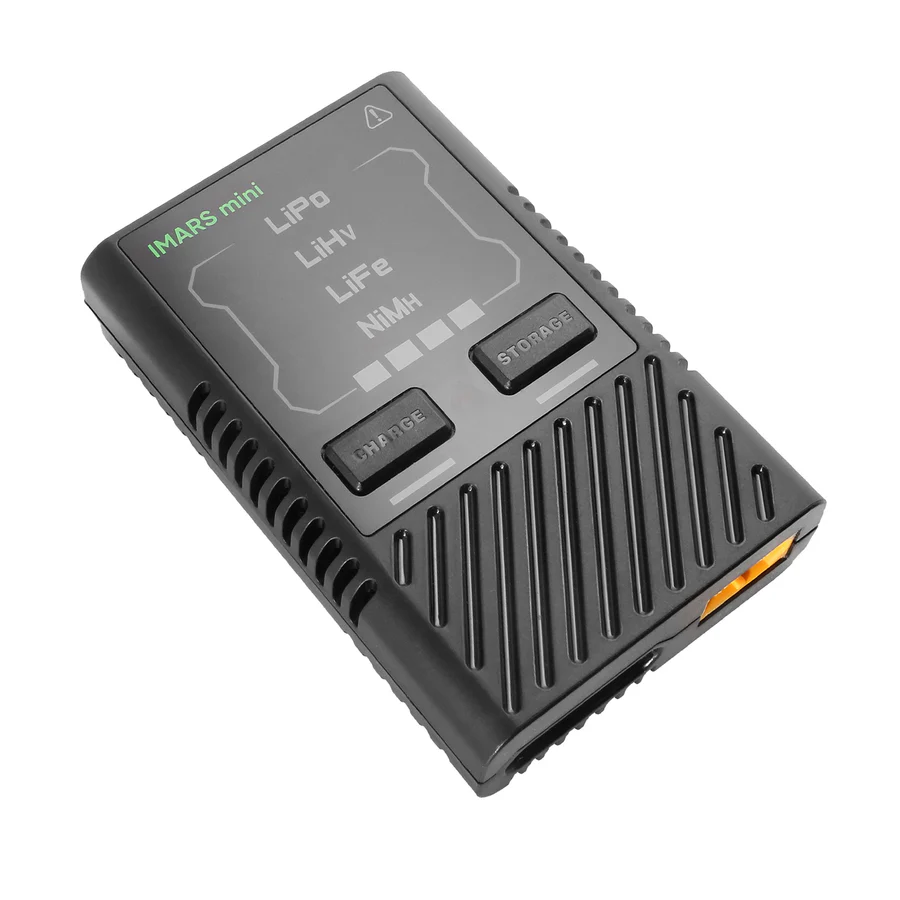

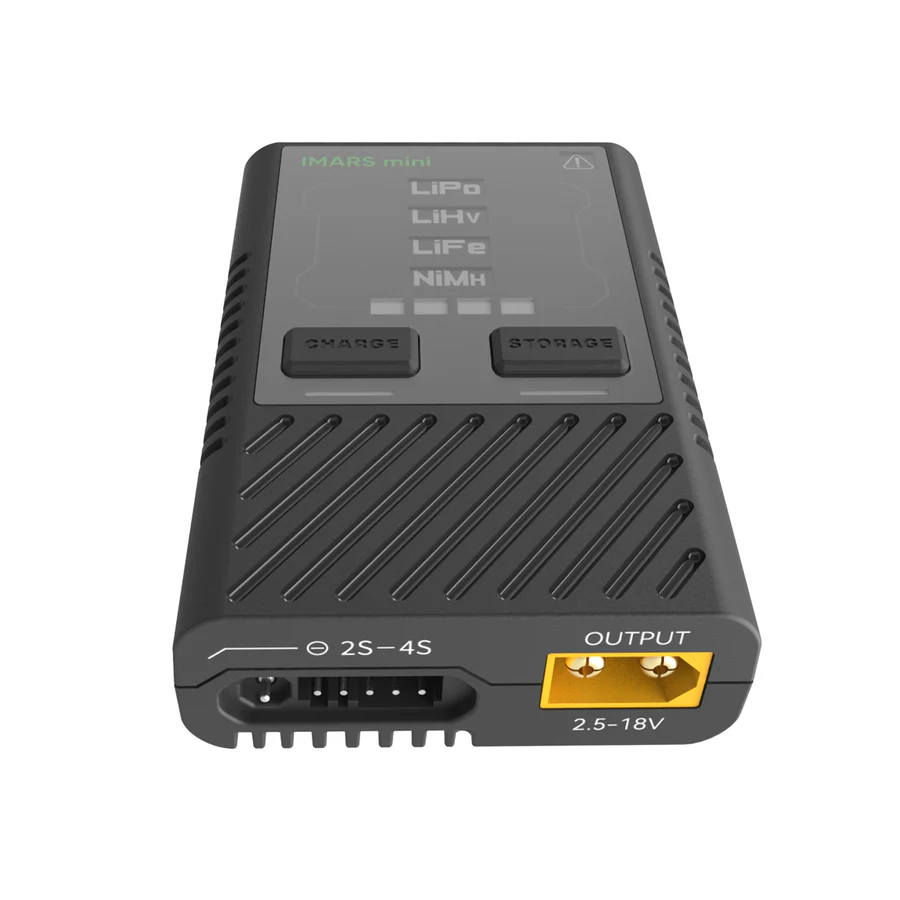

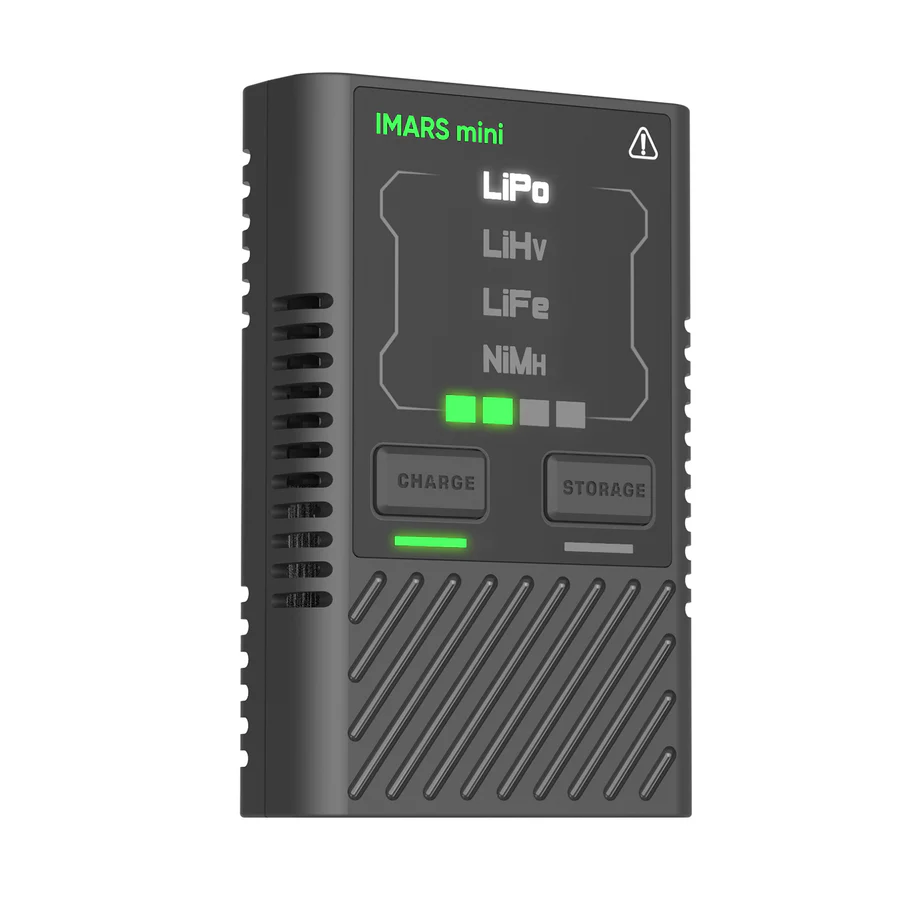

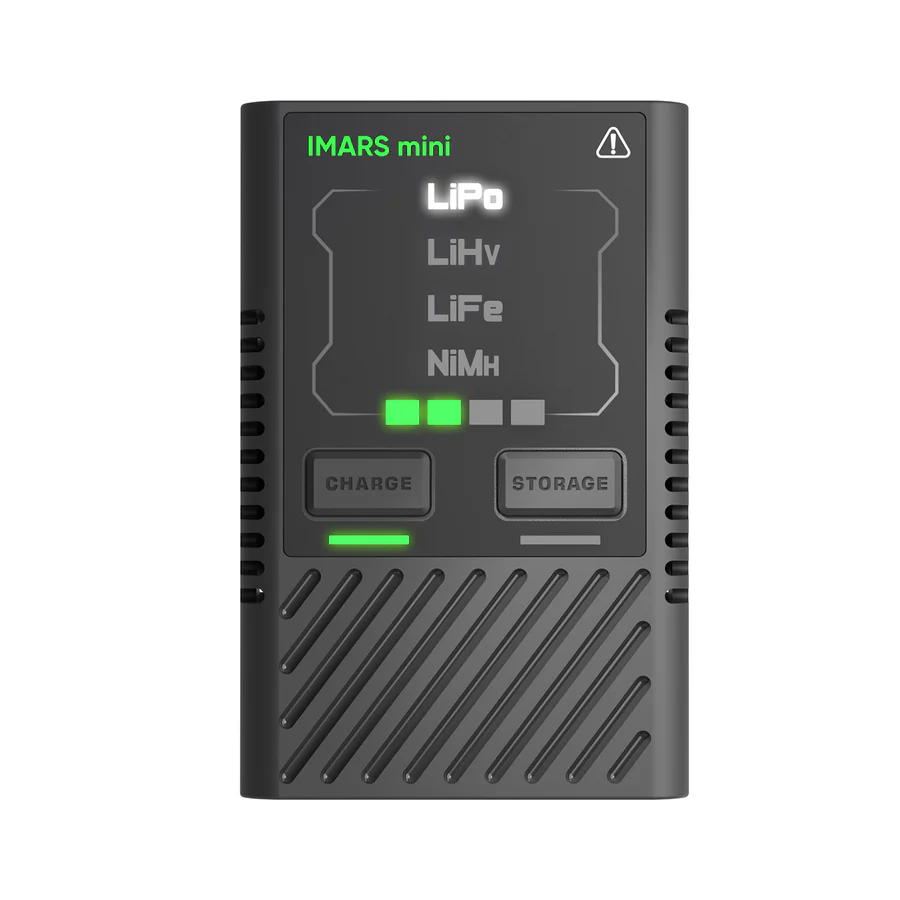

Gens Ace iMars mini G-Tech USB-C 2-4S 60W Charger - compact and powerful smart charger for every RC enthusiast!
Compact. Smart. Ready to use.
The iMars Mini is an intelligent battery charger designed specifically for Gens ace G-Tech smart batteries, but is also perfectly suitable for regular (smart-free) batteries. It is the first member of the G-Tech Smart Eco family, ensuring fast and smooth charging at home, during competitions and when travelling.
Smart automation:
Connect the G-Tech smart battery to the charger and the charger automatically detects the battery type, voltage and recommended charging current via the smart balancing plug. Charging starts automatically after 5 seconds - no additional settings required.
Universal compatibility:
To charge normal batteries, manually select the battery type and charging mode. The charger adjusts the current according to the battery voltage and ensures safe charging in every case. The compact and lightweight body makes it the ideal choice for weekly competitions or for taking with you on your travels.
Basic characteristics:
- Suitable for 2-4S LiPo, LiHV, LiFe and 2-12S NiMH batteries.
- Automatic G-Tech smart cell detection with built-in IC chip
- Automatic Storage - the smallest charger with this feature!
- Robust balancing connector and updated user interface
- Extremely compact and easy to carry
Technical specifications:
- Maximum charging power: 60W
- Charging current: 1-5A (automatic adjustment)
- Storage mode: 3W discharge / 60W charging
- Input voltage: 5-20V
- Maximum input current: DC 3A
- Balancing current: 0.4A/cell × 2
- Input port: QC / PD / BC1.2 / USB-C v1.4 / SDP / CDP / DCP / Apple 5V 2.4A
(Does not support 5V 1A adaptors - Suitable adaptor included!) - Suitable batteries: Lipo/LiHv/LiFe (2-4S), NiMH (2-12S).
- Operating temperature: 0°C to 40°C
- Storage temperature: -20°C to 60°C
- Dimensions: 85 × 55 × 21 mm
- Weight: approx 64g

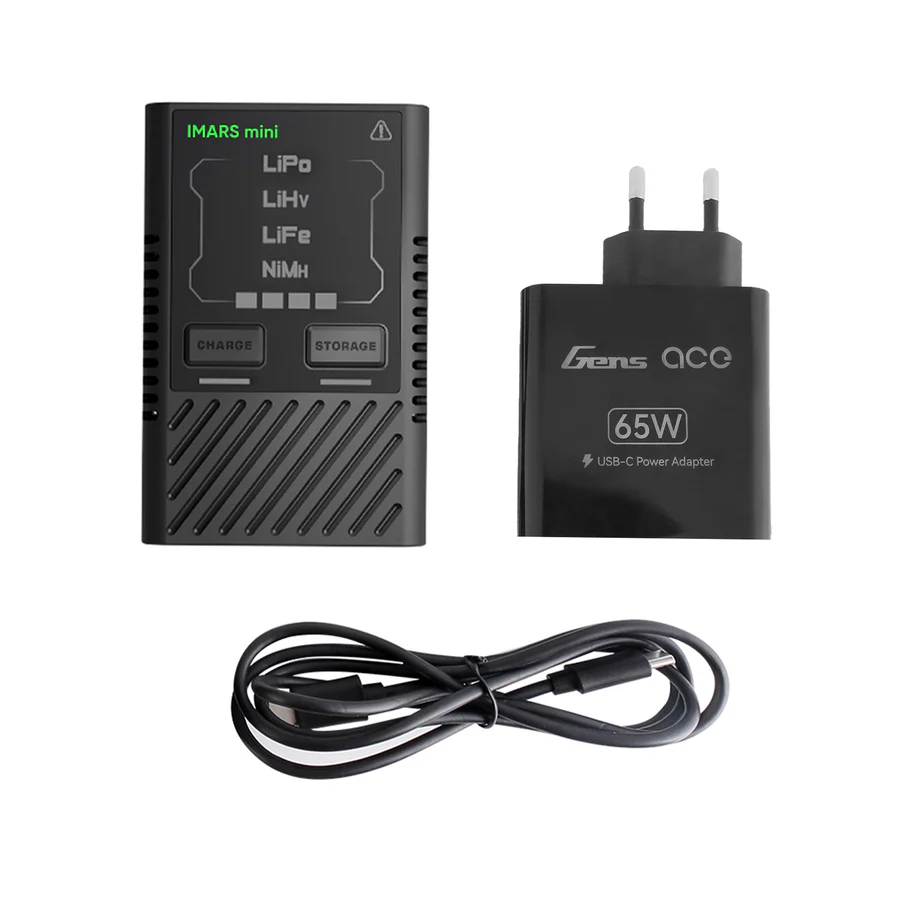

Included:
- iMars Mini 60W smart charger ×1
- 1m USB-C power cable ×1
- 65W power adapter ×1
- XT60 (F) → EC3 (M) adapter ×1
- XT60 (F) → Deans(T) (M) adapter ×1
- User manual ×1
Frequently asked questions:
Q: Why can't I manually select the charging current?
V: The iMars Mini automatically adjusts the charging current according to the size and type of battery - for both G-Tech smart batteries and regular batteries. Typical charging is 1C-1.5C (up to 60W). No manual adjustment is required.
Download the guide -> iMars mini Manual
